Video

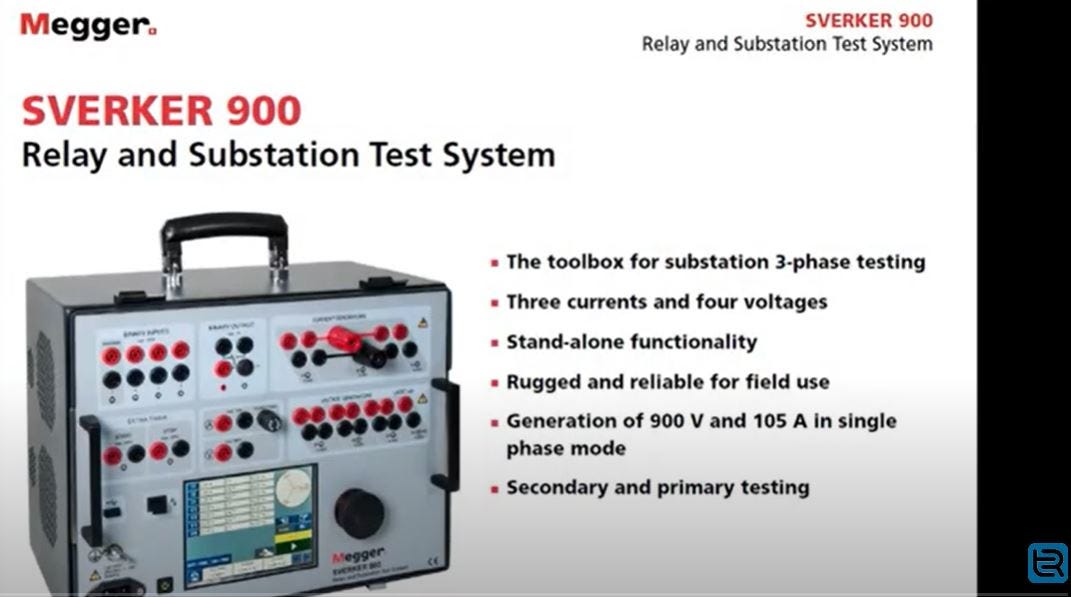

Covering the testing options of the Megger Sverker 900E Relay Test Set as well as the inputs and outputs on the interface. Relay test set for 3 phase protective relay equipment. Current ranges to 105 A. ac outputs to 900 V & dc outputs to 900 V. Power Factor and Phase shifting measurements. 4x Voltage and 4x Current generators with 4 binary inputs, 2 binary outputs, and timing measurement. Built-in computer controller for setting up and sequencing tests.

An overview on how-to use the Hioki PW3198 Power Quality Analyser and accessories. The Hioki PW3198 is a premium Power Quality Analyser for demanding applications. The unit includes 3x 1000 A ac CTs, 1x 200 A ac/dc CT and 4x 9667 5000 A flexible CTs. Ideal for ac mains studies as well as solar inverter evaluations. The unit is supplied with Hioki 9624 PQA-HiVIEW Software for detailed data analysis and report generation.

A quick overview of the Flir E60 Thermal Imaging Camera including the supplied equipment, basic functionality and settings. The Flir E60 measures -20 to 650°C, IR and MSX resolution 320 x 240, 60 Hz. NETD 50 mK. 2x and 4x digital zoom. Visual image 3.1 MP, built-in LED lamps, laser locator, scalable IR picture-in-picture. Video recording, touch screen, composite video out, Wi-Fi, and USB. Infrared camera applications include electrical distribution, mechanical (belts, rollers, couplings, gaskets/seals, compressors etc), product development, HVAC/R, automotive. Bluetooth support for voice annotations and selected Extech equipment. PC software provided. Mobile app available.

Covers the capacity of the Megger EZ-Thump, how to determine voltage capacity, and various functionality features.

The Megger EZ-Thump 12kV Thumper and TDR Power Cable Fault locator operates off either ac supply or internal batteries. The kit includes the Megger pin-pointer to locate faults when used in thump mode. Internal battery provides 30 min of thumping with a 3 h recharge time. Generates a 500 J 0 to 12 kV @ 12 mA pulse for thumping.

How to determine failure levels for your batteries, the internal resistance measurement level, and cut-off voltage. Also gives a quick overview on setting up the Hioki 3554 Battery HiTester to conduct tests.

Takes on-the-spot measurements of the internal resistance, voltage and temperature of lead-acid batteries, principally for UPS and similar applications, without needing to shut off the battery. Instantaneous results, on a three-rank scale of Pass, Warning, or Fail, using a composite decision based on the internal resistance and the voltage. Resolution of 1 µohm, necessary for high capacity batteries (of at least 500 Ah). Includes Hioki 9460 clip type temperature leads.

This video demonstrates to use the Fluke ii900 ultrasonic imager to detect leaks within industrial environments.

A tutorial for operation of the Resipod resitivity meter and ResipodLink software.

This video demonstrates to use the Defelsko PosiTest CMM to measure the moisture levels in concrete.

This video demonstrates the quick and easy set up of the Aeroqual Dust Sentry available to rent from TechRentals.

This video demonstrates how to use the Proceq GPR Live to locate reinforcement in concrete. Portable ground penetrating radar (GPR) for concrete testing. Conducts wide frequency spectrum measurement with Line and Area scan modes. Features a compact, wireless probe with standard rechargeable AA batteries.

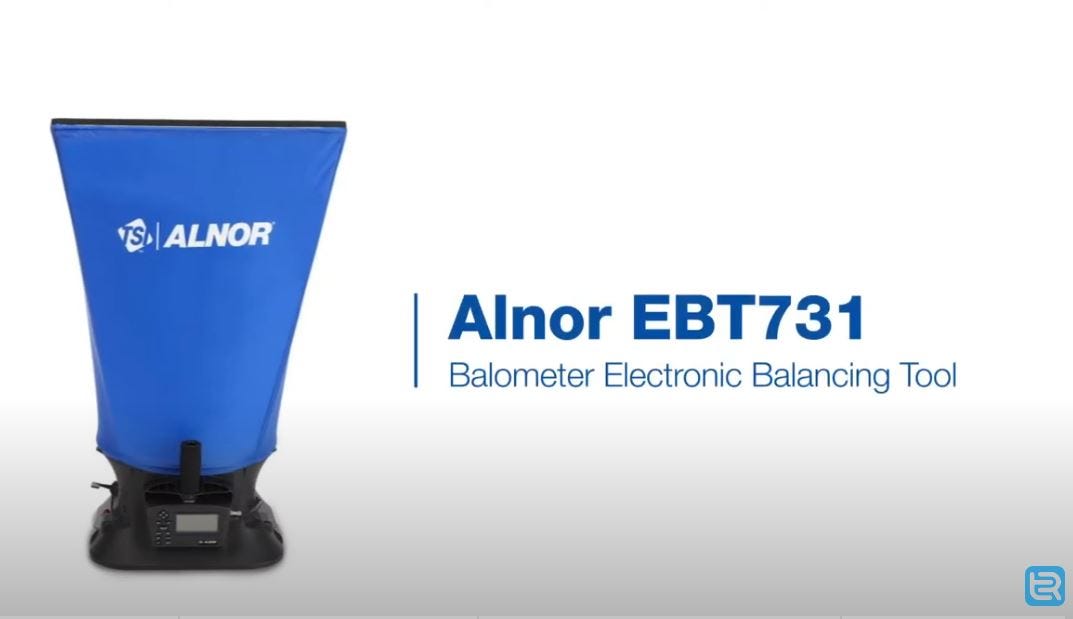

This video is a quick overview of the ALNOR EBT731 Balometer Electronic Balancing Tool.

This video demonstrates how to use the Proceq GPR Live to conduct an area scan to locate reinforcement in concrete. Portable ground penetrating radar (GPR) for concrete testing. Conducts wide frequency spectrum measurement with Line and Area scan modes.
